Lok Pilot v2 Complete CV list and Function Mapping

Digital ESU
1

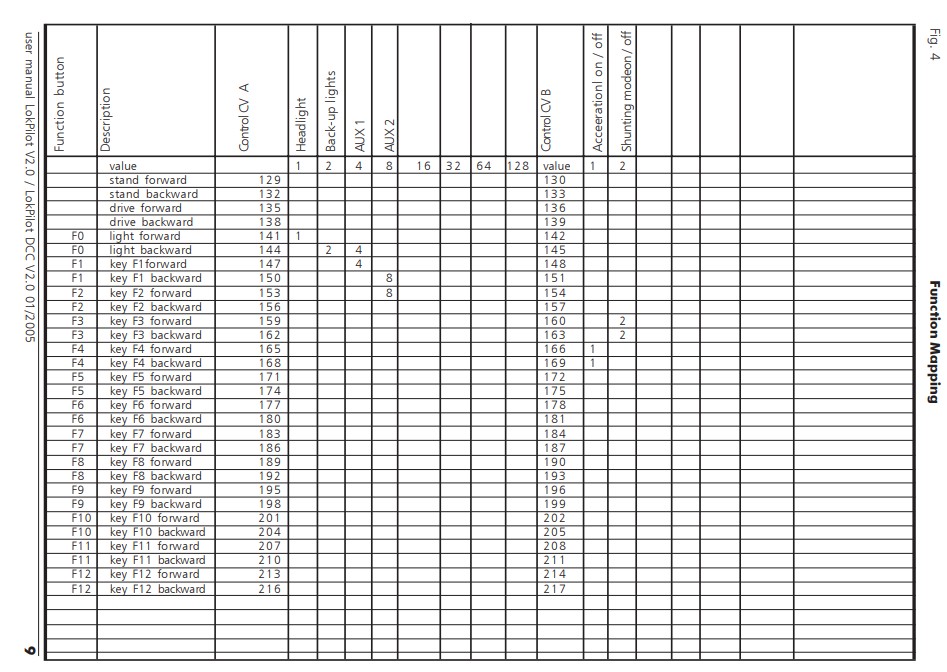

Function Map V 2
Function Map V 2947×672 151 KB

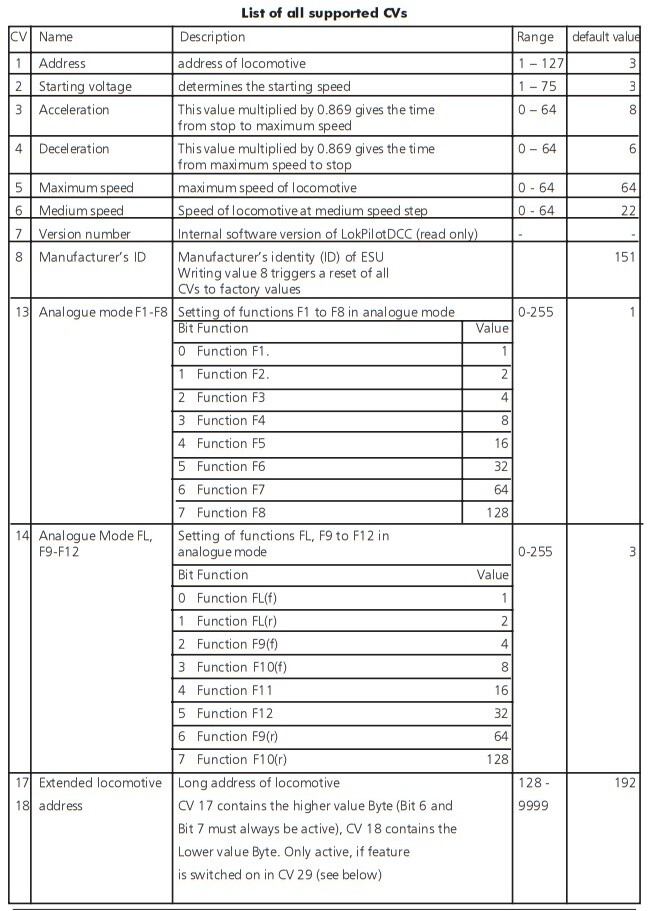

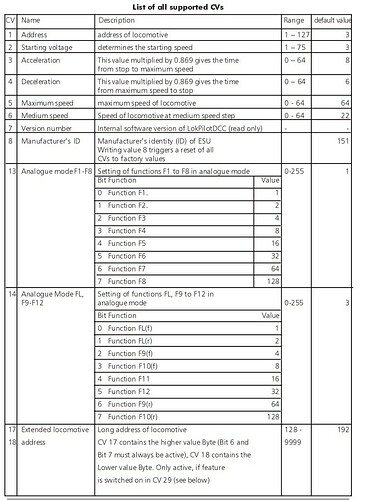

CV 1 - 18
CV 1 - 18672×911 129 KB

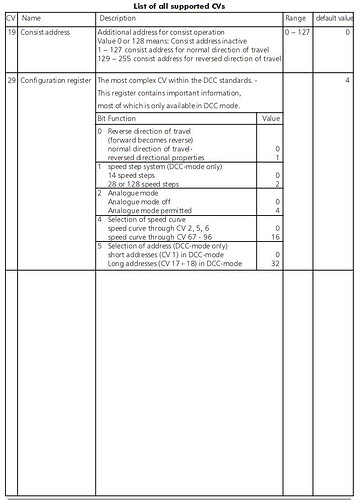

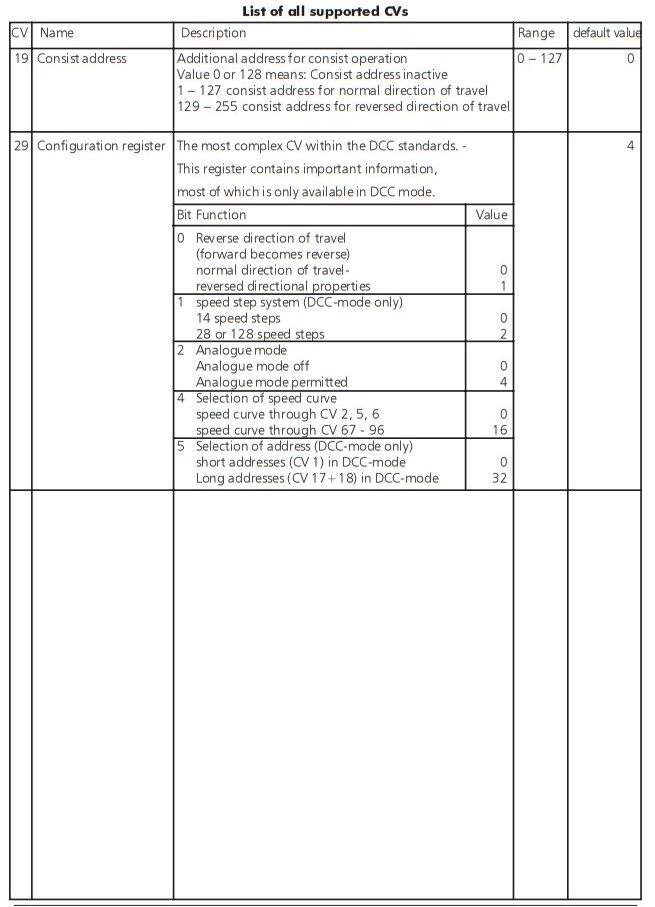

CV 19 - 20
CV 19 - 20655×907 83.7 KB

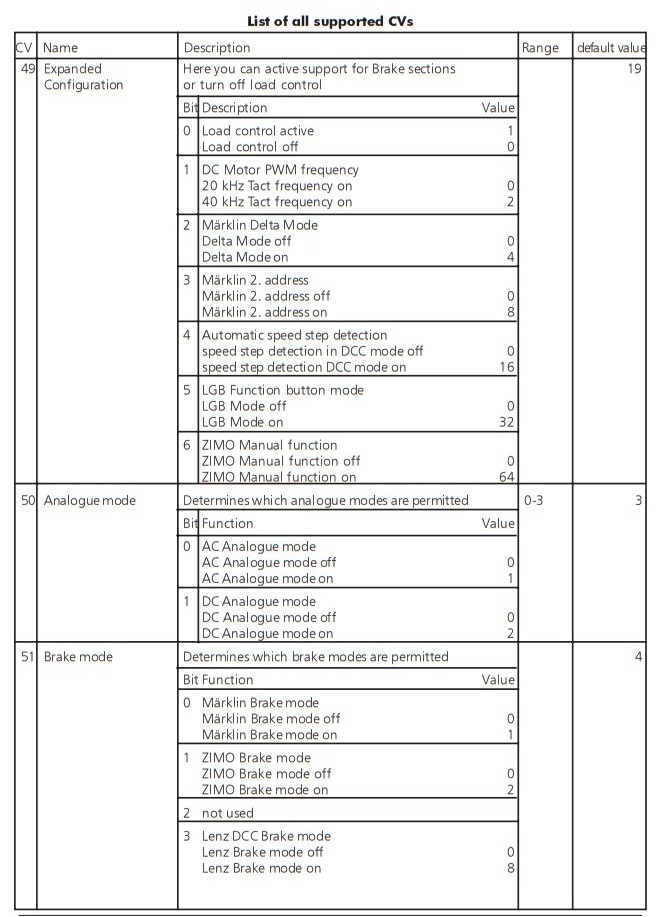

CV 49- 51
CV 49- 51662×917 108 KB

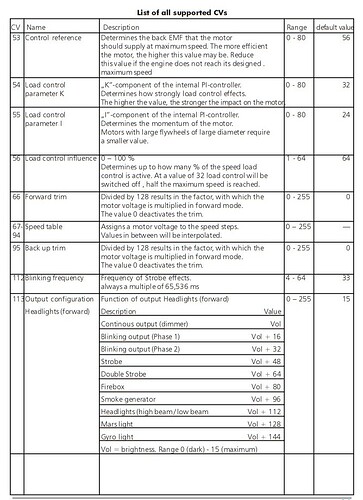

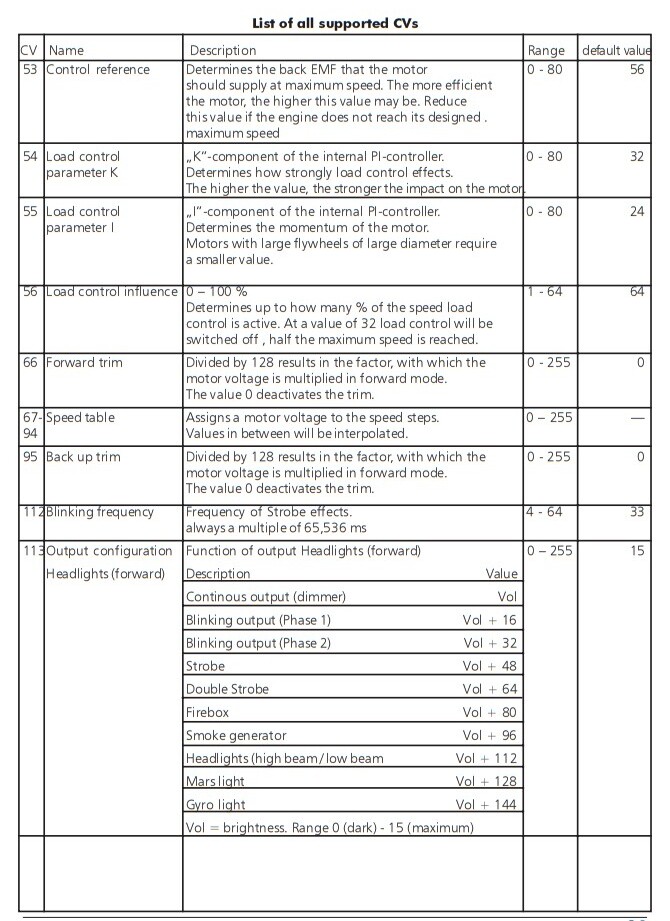

CV 53 - 113
CV 53 - 113670×921 138 KB

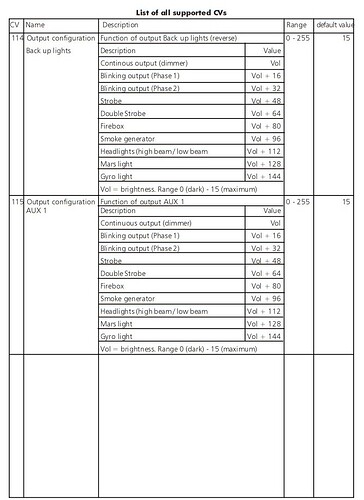

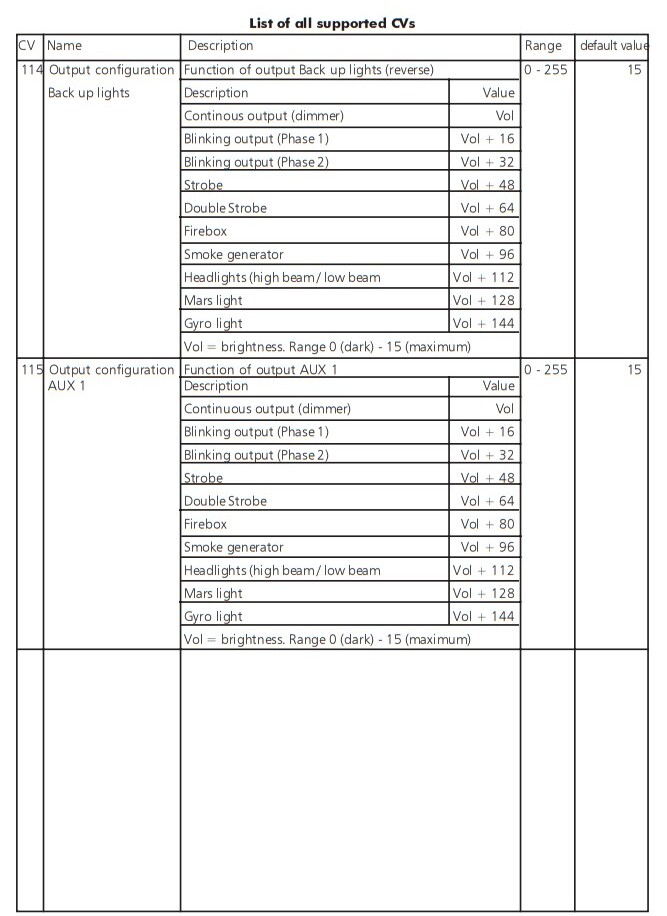

CV 114 - 115
CV 114 - 115667×916 92.6 KB

1 Like
